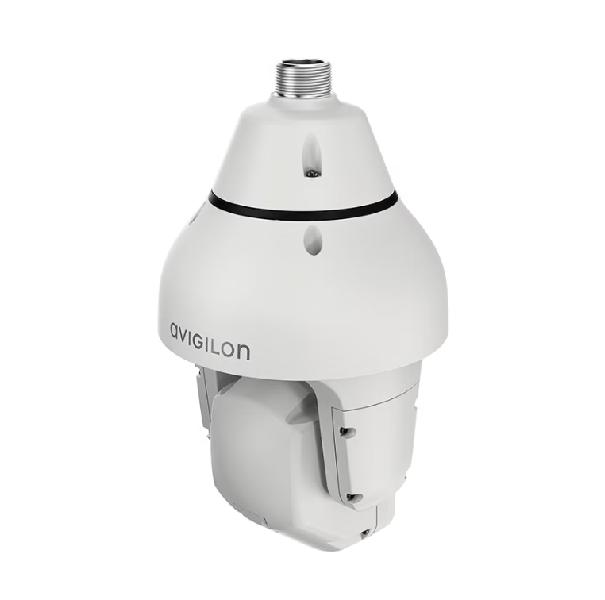

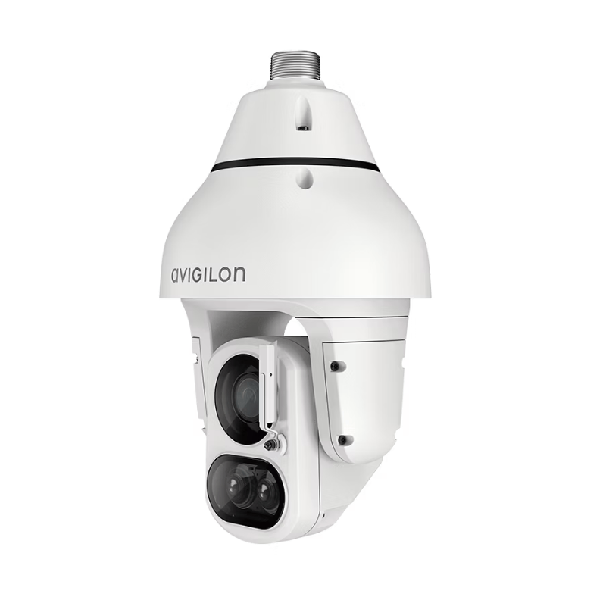

Avigilon H5A IR PTZ Camera
SEE MORE IN THE DARK
The Avigilon H5A IR Pan, Tilt and Zoom (PTZ) camera empowers security teams to see more in the dark with an automated IR illumination range of up to 300 meters1 and the ability to look-up 20 degrees above the horizon. Available in 2, 4 and 8 MP, the H5A IR PTZ delivers 360-degree views, up to 40x zoom2 and high-resolution imaging for superior situational awareness of vast sites in the most challenging lighting conditions. Whether it’s a completely dark airfield or a poorly lit parking lot, the H5A IR PTZ is ready to take on the outdoors with its ability to resist water, corrosion, dust and impact.
-
ABOVE THE HORIZON LOOK-UP
Provides more coverage than a typical PTZ camera with 360-degree views and the ability to look-up 20 degrees above the horizon.
-
AUTOMATED IR ILLUMINATION
Sees up to 300m1 in complete darkness and ensures consistent scene illumination with the IR projection angle automatically adjusting to its zoom level and field of view.
-
FIPS 140-2 COMPLIANT
Brings increased data security with FIPS-compliant cryptography enabled on cameras3 and an onboard TPM4 to secure cryptographic keys.
-
H.264 & H.265 HDSM SMARTCODEC™ TECHNOLOGY
Optimizes compression levels for regions in a scene to help maximize bandwidth savings and keep internet connectivity costs down.
-
NEXT-GENERATION VIDEO ANALYTICS WITH AUTOTRACKING
Detects more objects with expanded object classifications and automatically tracks objects in zone for greater detail.
-
ONVIF® COMPLIANT
ONVIF Profile S and T compliance enables easy integration with existing ONVIF infrastructures. Profile G compliance supports search, playback and retrieval of recordings on the edge.
-
OPERATIONAL RELIABILITY FOR TRAFFIC MONITORING
Meets NEMA TS2 environmental requirements for deployment in traffic monitoring applications.
-
WATER, CORROSION, DUST & IMPACT PROTECTION
Protects against water, dust, corrosion and impact with Type 4X, IP66/67/68 and IK10 ratings.
Performance Characteristics
Compression Technology
H.264 and H.265 video compression support
Frame Rate
Up to 60 fps depending on resolution settings
Image Sensor
High sensitivity CMOS image sensor
Low Light Performance
Advanced low light imaging for nighttime and dim environments
Maximum Resolution
Up to 8 MP video resolution for detailed image capture
Network
100BASE-TX
ONVIF
ONVIF compliance version 1.02, 2.00, Profile S, Profile T, Profile G
Operating Temperature
Continuous operation from -40 °C to + 60 °C (-40 °F to 140 °F) Pan and tilt speeds reduced by 50% at temperatures -40 °C (-40 °F) or below Wiper is functional at -10 °C to +60 °C (14 °F to 140 °F)
Optical Zoom
Up to 36x optical zoom for long range subject identification
PTZ Movement
Continuous 360° pan with high speed tilt and zoom control
Wide Dynamic Range
Up to 120 dB WDR for challenging lighting conditions
Physical Characteristics
Dimensions
(Ø) 250 mm × (H) 364 mm (Ø) 9.84 ” × (H) 14.33 ”
Environmental Rating
IP66 and IP67 weather resistance for dust and water protection
Storage Temperature
-10 °C to +70 °C (14 °F to 158 °F)
Weight
6.76 kg (14.9 lbs)
Power Characteristics
Power Consumption
75 W max with 24 VDC aux power supply or 90 W PoE, 110 VA with 24 VAC aux power.
